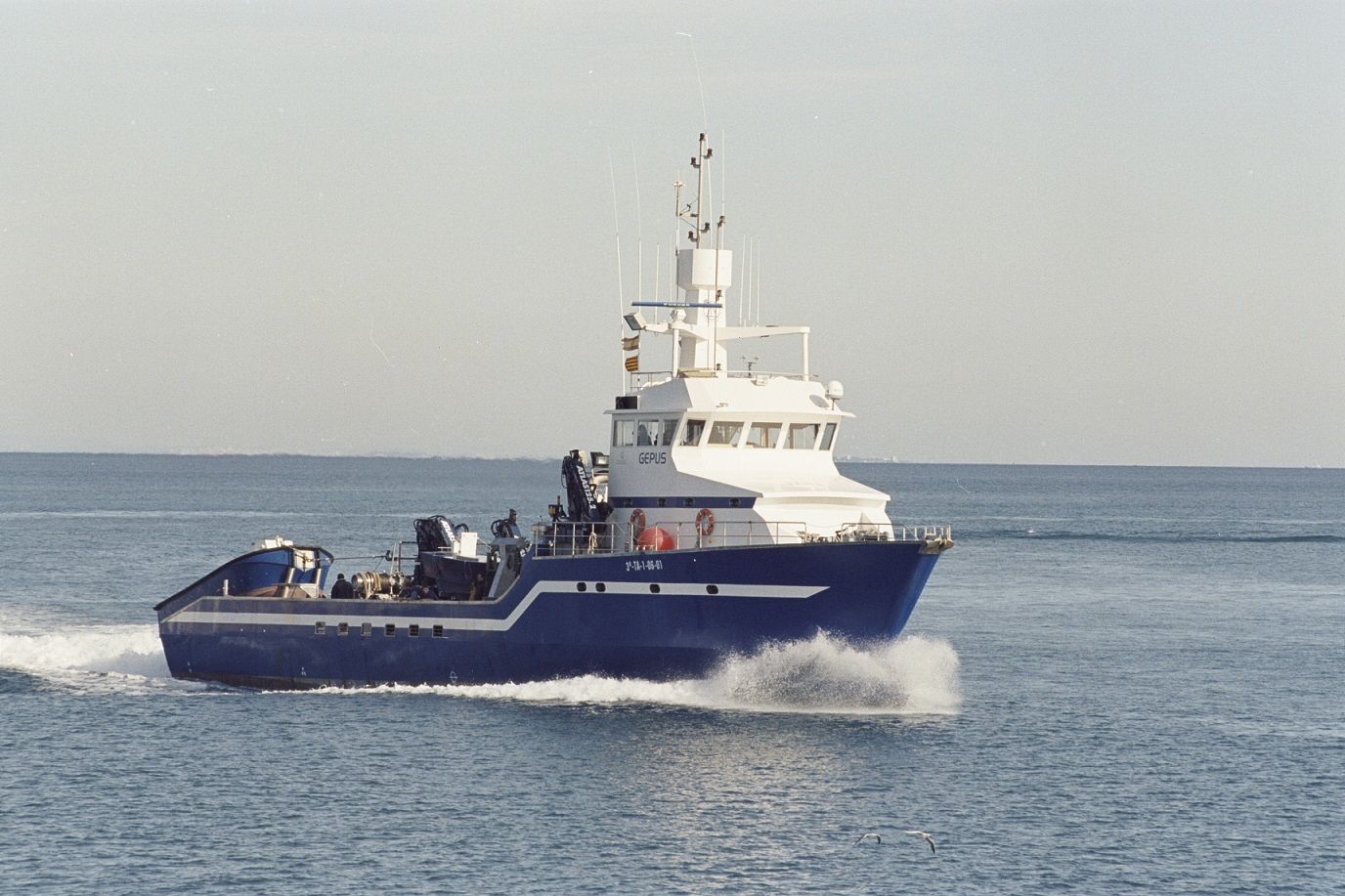

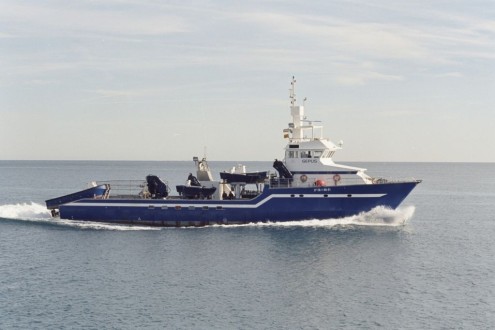

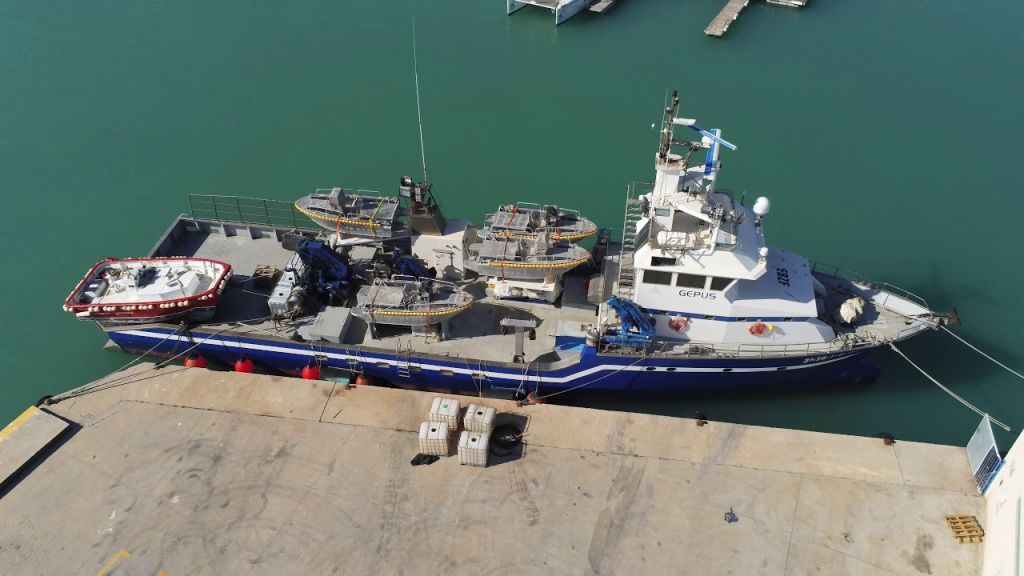

ARESA 5000 - 4000 TC

Tunna Fishing Vessel

The model ARESA 5000-4000 TC Tuna fishing boat, has been specially designed for tuna fishing with purse seine system. Capable of staying for periods of 15 to 30 days at sea, in order to explore the largest possible sea area and find the prized schools of tuna, in any of its different species.

This model can be built in Composite Materials ( PRVF ) , Naval Aluminum and Steel , or using a combination of them , in order to reduce its total weight and thus , its annual fuel consumption , making it a more eco-efficient vessel .

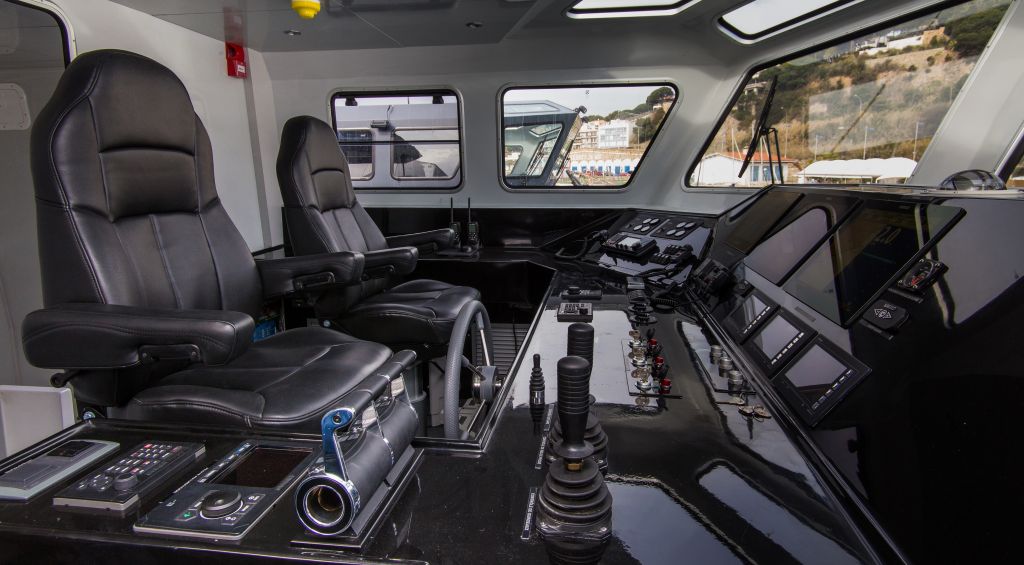

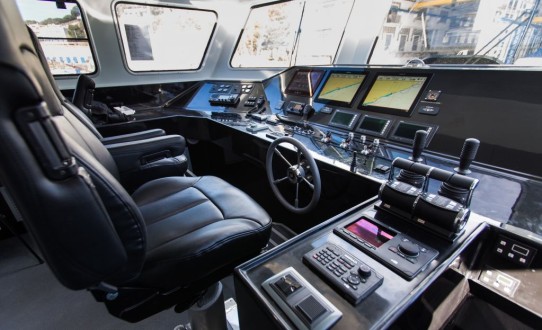

Equipped with the most sophisticated detection technology for tuna at sea as its sonars and fishing sounders of the Furuno brand, in addition to many other monitoring and tracking systems, such as MaxSea software and a high level of radio and satellite communication, make this vessel the perfect tool for this particular type of fishing.

It can be equipped with different fish preservation systems in its holds, depending on the requirements of the end customer, freezing at -25 ºC, freezing at -60 ºC and preservation and flake ice , among others


Request more info
I have read and accept the privacy policy and the legal notice


Principal particulars icon
Principal particulars
Length overall
50.00 - 40.00 m
11.50 - 10.00 m
3.60 m
3.50 m
Gross tonnage
235 GT
225 Kva
Deadweight icon
15 p

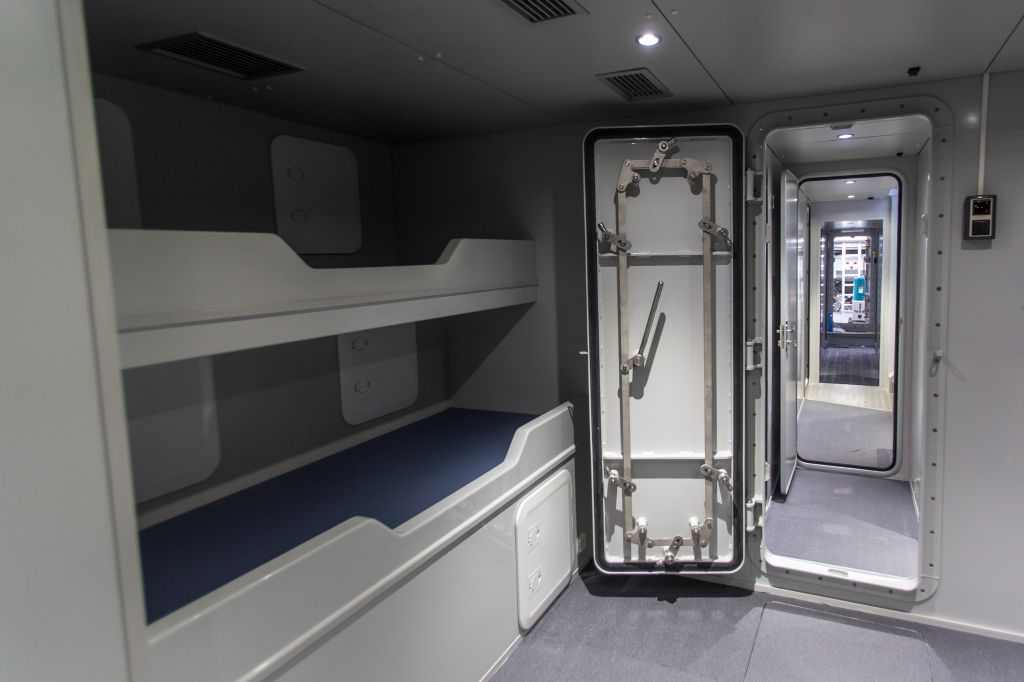

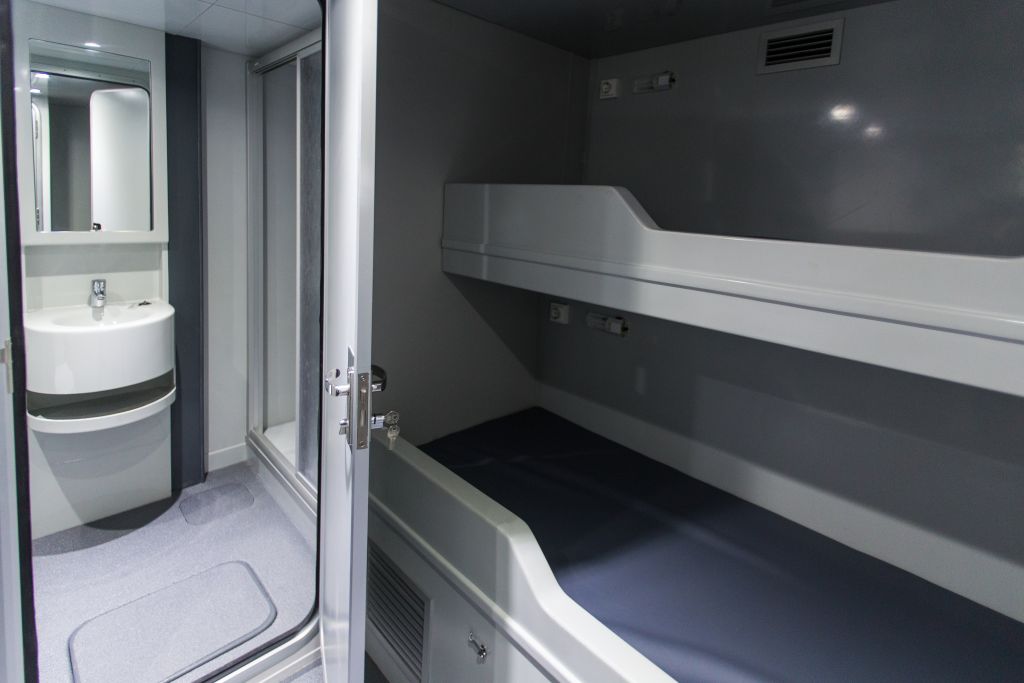

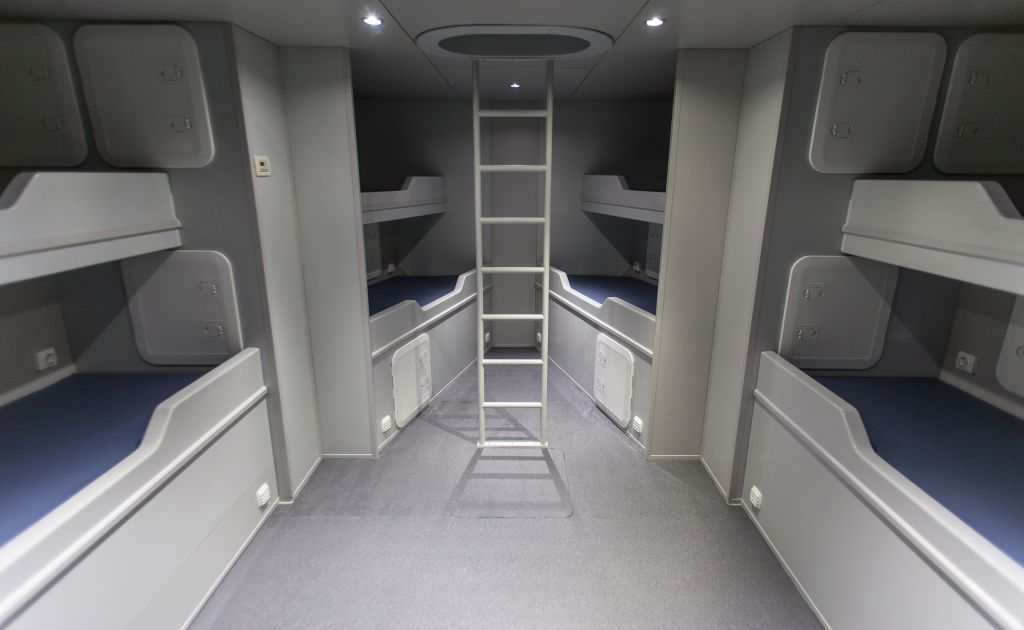

Cabins for
15 p
100 - 50 m3
Fresh water
15 m3
Hydraulic oil
1 m3
Hold capacity
500 - 250 m3
Performance icon
Max speed
16 - 14 kn
Economic speed
12 kn
20 days

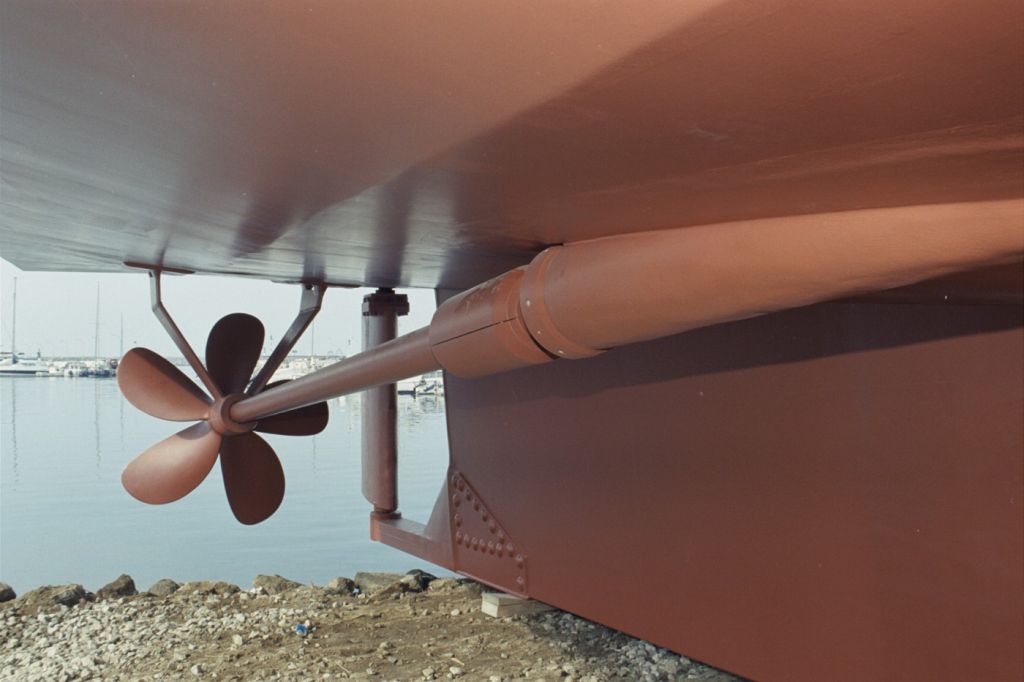

Propulsion icon

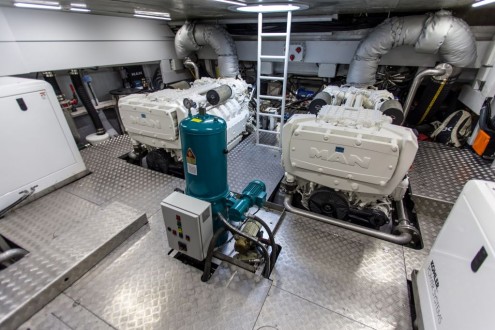

Main engines
3.500 - 2.000 HP
Construction material icon
Construction material
Equipment icon
Hydraulic seine hauler.
3 x hydraulic cranes.
Ice machine of 2000 kg/day capacity.
3 x Auxiliary fishing boat.
Aft ramp.
Complet equipment for tuna fishing
Fish factory
Freeze tunnel
Hold @ -18ºC
