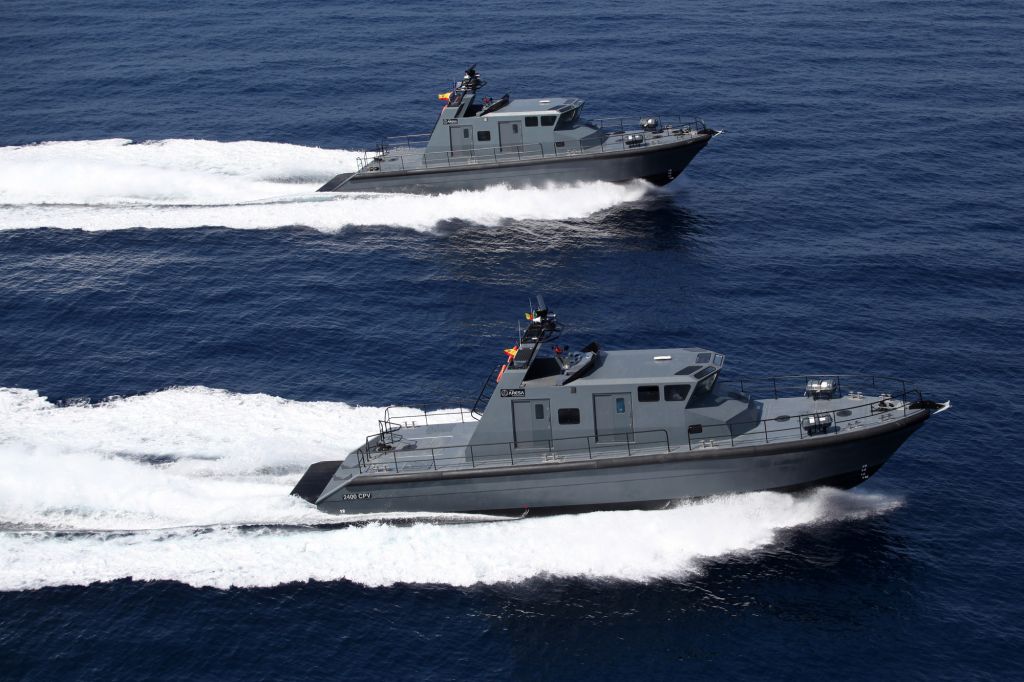

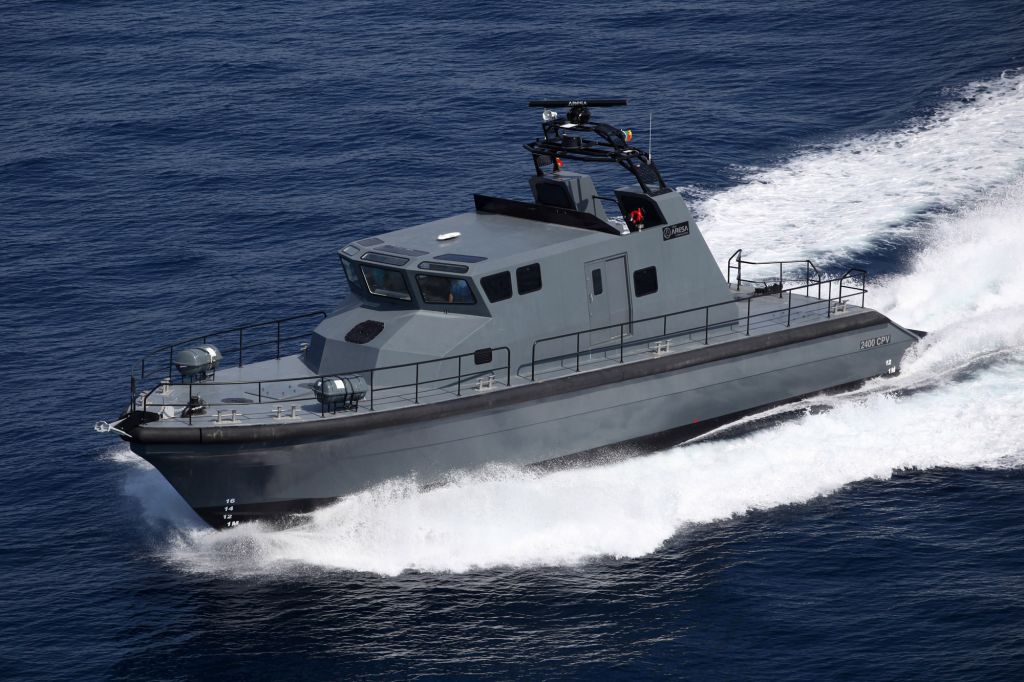

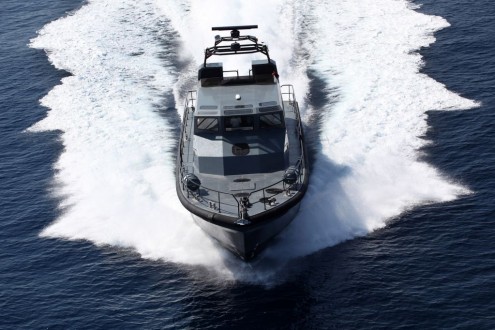

Inshore Patrol Vessel

The ARESA 3000 - 2500 DEFENDER is the smallest model of the ARESA IPV series of inshore patrol vessels. It can be built in naval aluminium or entirely in composite materials to reduce its final weight and increase its autonomy and range.

Ideal platform for the protection of the EEZ Exclusive Economic Zone in all its extension, as well as for the surveillance and control of extensive coastal areas. Its autonomy and capacity allow it to remain at sea for a period of 15 days and accommodate a crew of 15/12 persons.

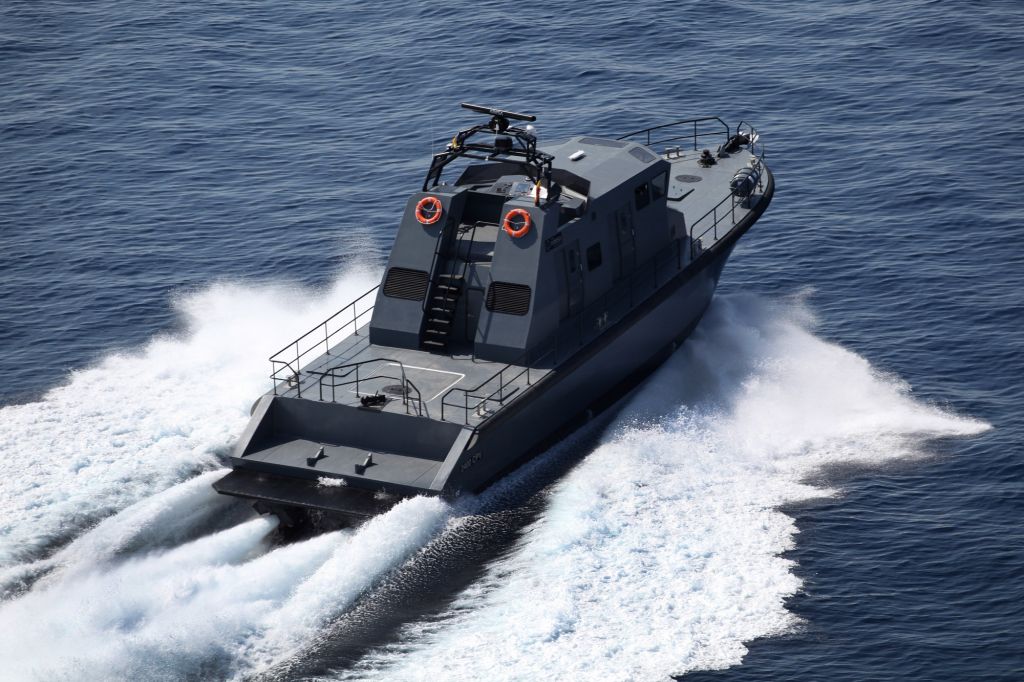

Equipped with a 6-metre long platform for launching fast intervention craft and active and passive defence and protection systems, this vessel is an ideal platform for the development of inshore missions.This model can be equipped with propeller propulsion system or with waterjets depending on the final speed desired by the client and the final missions to be executed. Its main deck is reinforced in order to install the corresponding defence and protection systems.

Request more info
I have read and accept the privacy policy and the legal notice


Principal particulars icon
Principal particulars
Length overall
27.00 - 24.00 m
6.35 m
1.20 m
Full displacement
79 tn
Light displacement
56 tn
2 x 50 Kva
Deadweight icon
12 p

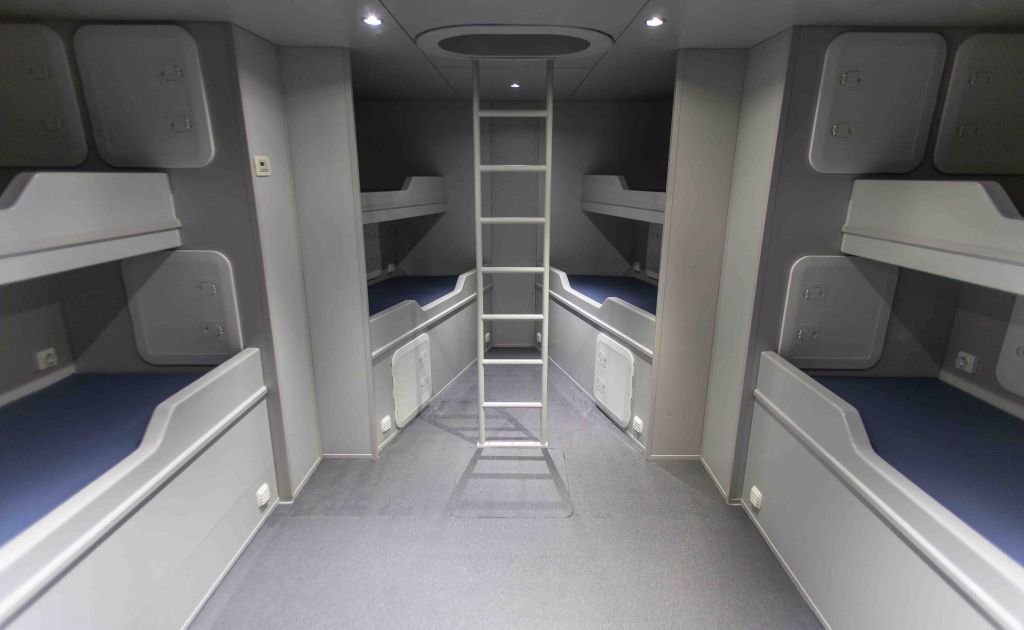

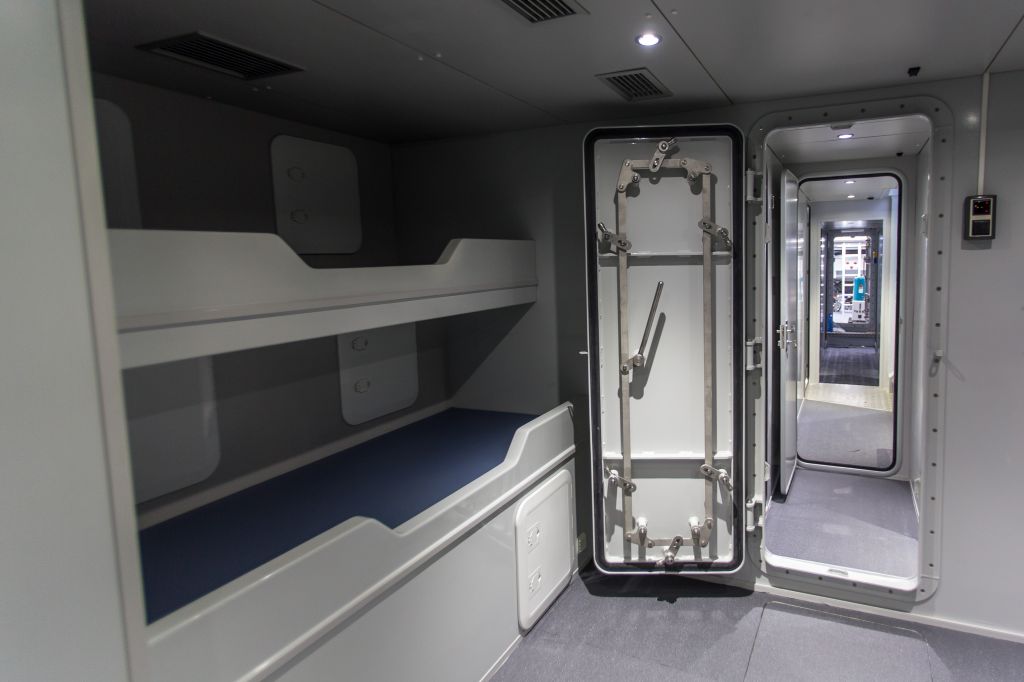

Cabins for
12 p
17.000 l
Fresh water
1.500 l
Black grey water
215 l
23 tn
Performance icon
50 - 30 kn
700 Nm
Propulsion icon

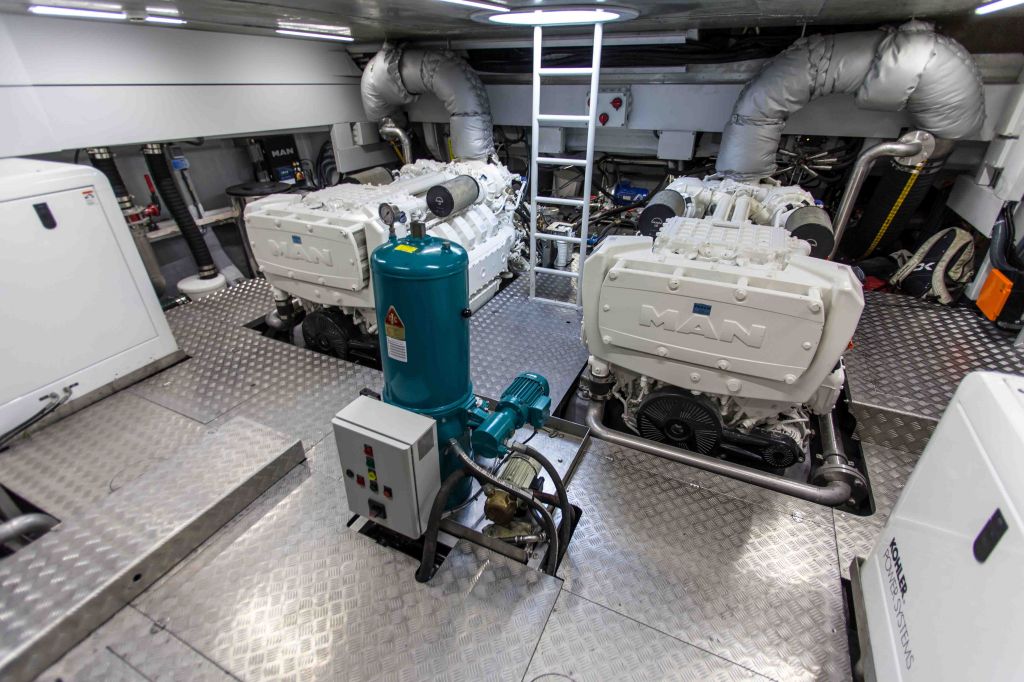

Main engines
4.000 - 2.800HP
Waterjet or Propellers
Construction material icon
Construction material
Equipment icon

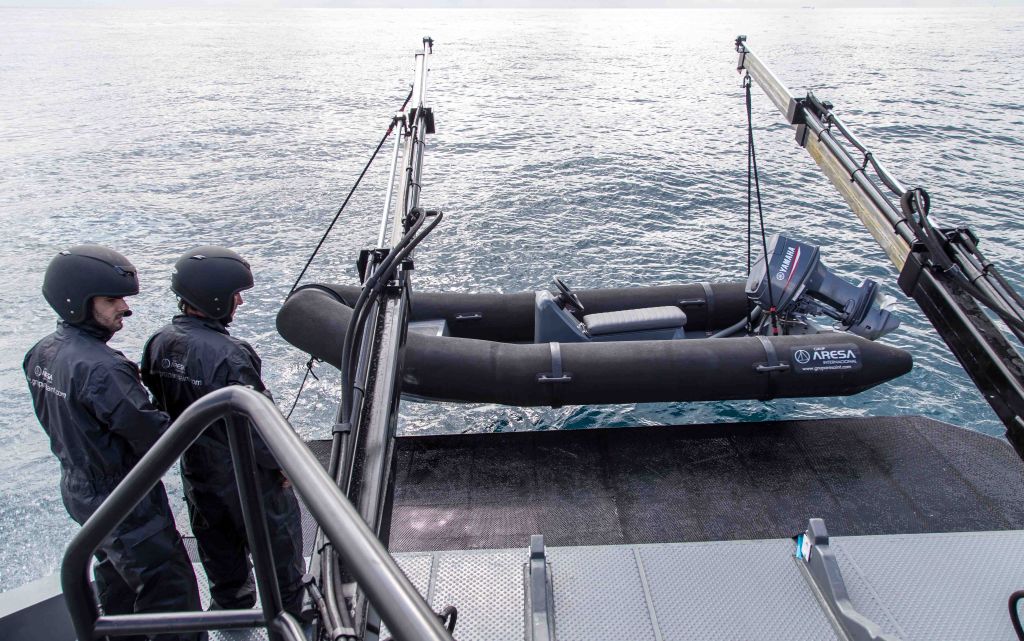

ARESA RIB ramp for fast intervention
Fire fighting monitors up to 120l/h. Range 50m
Anti explosion fuel tank
Armored Bridge : NIJ Level III+ (Optional)
Electronics: Custom
Missions and services icon
Missions and services
Coastal patrol Missions
Border Patrol Missions
Anti-Piracy Missions
Anti Smuggling Missions
Counter –Terrorism Missions
Troops Transport Missions
Search & Rescue Missions
Private security Missions
Inshore Patrol Vessel  video
