INSHORE PATROL VESSEL IPV
Launch video

ARESA 4000 - 3000 IPV PATROL

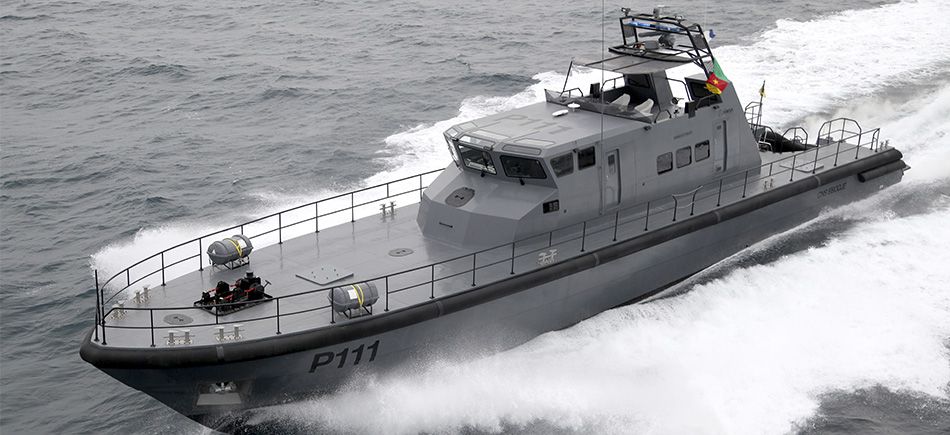

INSHORE PATROL VESSEL IPV

Principal particulars
length overall 40.00 / 30.00 M
beam overall 7,50 / 8,50 M
draught 2.20 m
full displacement 115 / 160 TN
light displacement 78 TN
generators 2 x 80 Kva
Deadweight
crew 27 p
cabins for 17 / 28
fuel 30.000 / 60.000 L
fresh water 4.000 l
black/grey water 335 l
load 36 tn
Performance
speed 30-50 kn
Propulsion
main engines 4.200 / 6000 HP
propulsion PROPELLERS or WATERJETS
Construction material
material ALUMINIUM / GRP

Equipment

ARESA RIB ramp for fast intervention

Fire fighting monitors up to 120l/h. Range 50m

Anti explosion fuel tank

Armored Bridge : NIJ Level III+ (Optional)

Electronics: Custom

Missions & services

Inshore patrol Missions

International Cooperation Missions

Border Patrol Missions

Anti-Piracy Missions

Anti Smuggling Missions

Counter –Terrorism Missions

Troops Transport Missions

Search & Rescue Missions

Private security Missions
