ARESA 3500 H2 FCAT

H2 CATAMARAN FERRY

This catamaran is specially designed for transporting passengers at medium speed, with the greatest comfort and space available. It is hydrogen powered, therefore, it has been designed to be efficient from the hull geometry to the vessel's systems.

Its interiors are designed to carry the maximum passenger capacity in different zones and classes, including different areas of rest or use according to the needs of the end customer.

It has been designed to be propelled by propellers or watrejets in case of high speeds. Built entirely in naval Aluminium to obtain a reduced weight throughout its structure, it can also be built in GRP composite materials for greater comfort during navigation.

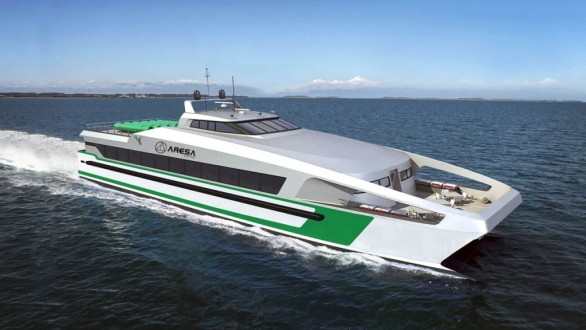

H2 CATAMARAN FERRY photo 1

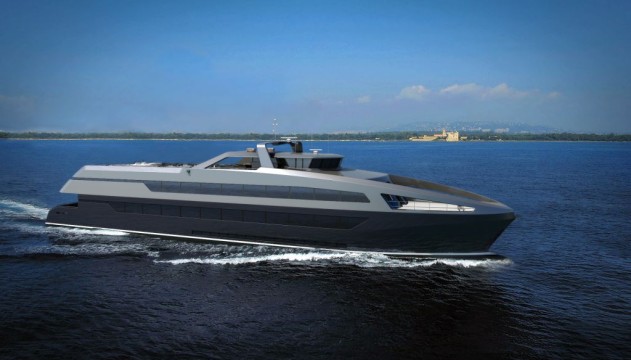

H2 CATAMARAN FERRY photo 2

H2 CATAMARAN FERRY photo 3

Features

Principal particulars icon

Principal particulars

Length overall

35.00 m

Beam

10.00 m

Draught

1.50 m

Depth

3.10 m

Generators

400 Kva

Deadweight icon

Deadweight

Crew

10 p

Passengers

300 - 350

Vip seats

35

Fuel

30.000

Performance icon

Performance

Speed

25 - 30 knots

Propulsion icon

Propulsion

Main engines

H2 GENERATOR POWER: 2.950 kW

Propulsion

Propellers / Waterjets

Construction material icon

Construction material

Material

GRP / ALUMINIUM
