Passenger Catamaran

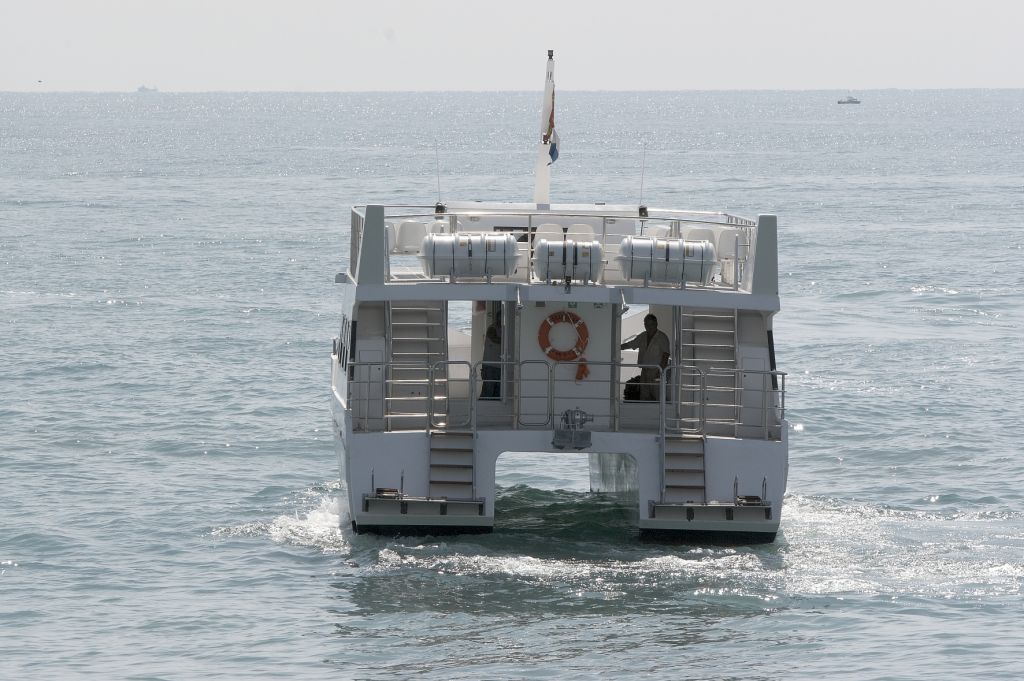

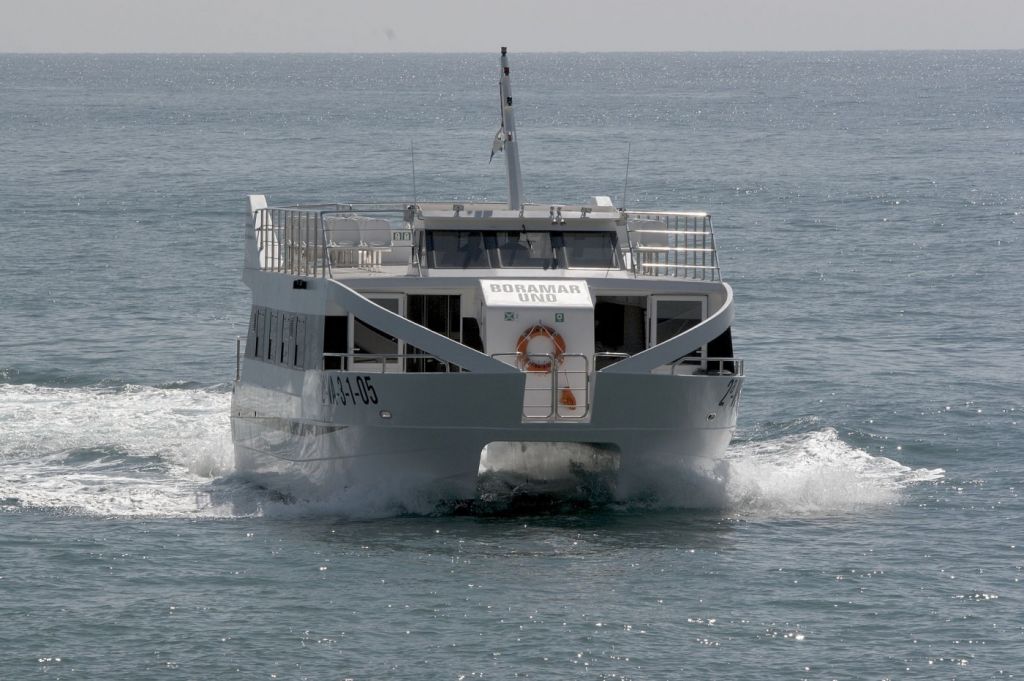

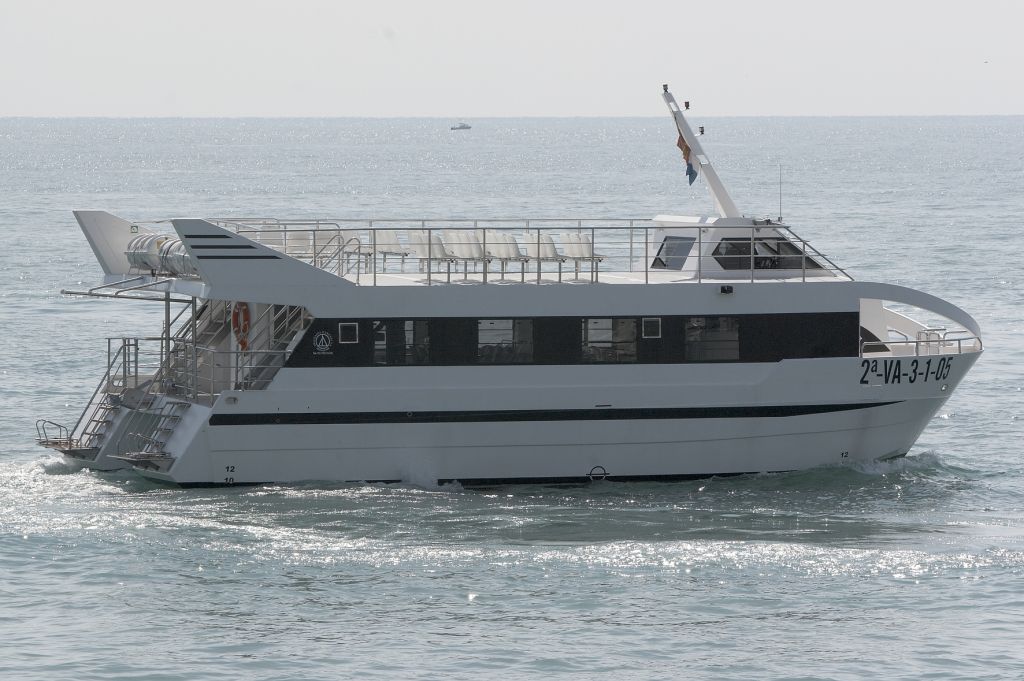

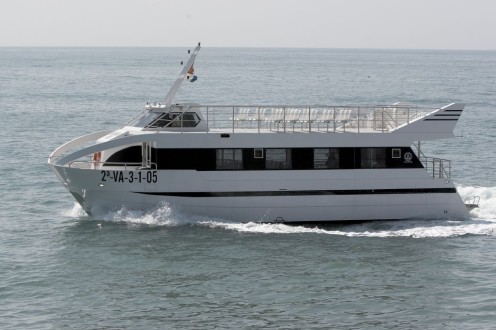

The ARESA 2000 FCAT DAYLINE is a 20-metre catamaran that can accommodate up to 100 passengers and sail at speeds of up to 20 knots. Equipped with space for carrying luggage and cargo at the same time, a bar area, toilets for the disabled and an auxiliary rescue boat, it has an open upper deck for open-air sailing and activities such as whale watching or coastal sailing in the sun.

It is the ideal vessel for passenger transport in coastal areas or for connecting islands over medium distances, as well as for trips in large ports. Its hull lines give it great stability at average speeds of 15-20 knots and great seaworthiness at sea.

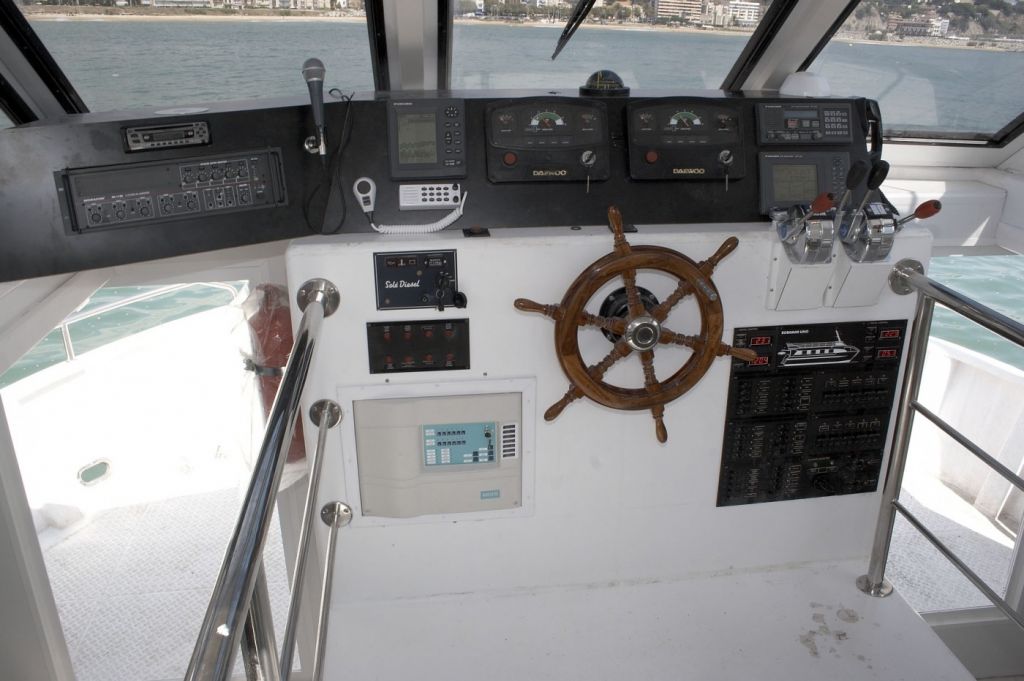

This vessel has accesses for passengers in its side and front areas, to disembark on the beach in tourist areas. The wheelhouse is installed at mid-height in order to improve visibility. This vessel can install non-polluting propulsion systems, such as hybrid, electric or green hydrogen propulsion in order to avoid polluting emissions during navigation.

Request more info
I have read and accept the privacy policy and the legal notice


Principal particulars icon
Principal particulars
Length overall
20,00 m
8,00 m
Light displacement draught
1.00 m
Light displacement
35 tn
30 Kva
Deadweight icon
3 p
120 p
2.000 l
Fresh water
500 l
Black grey water
800 l
Performance icon
Max speed
18 kn
Cruise speed
15 kn
200 NM
Propulsion icon
Main engines
1000 HP
Construction material icon
Construction material
Equipment icon

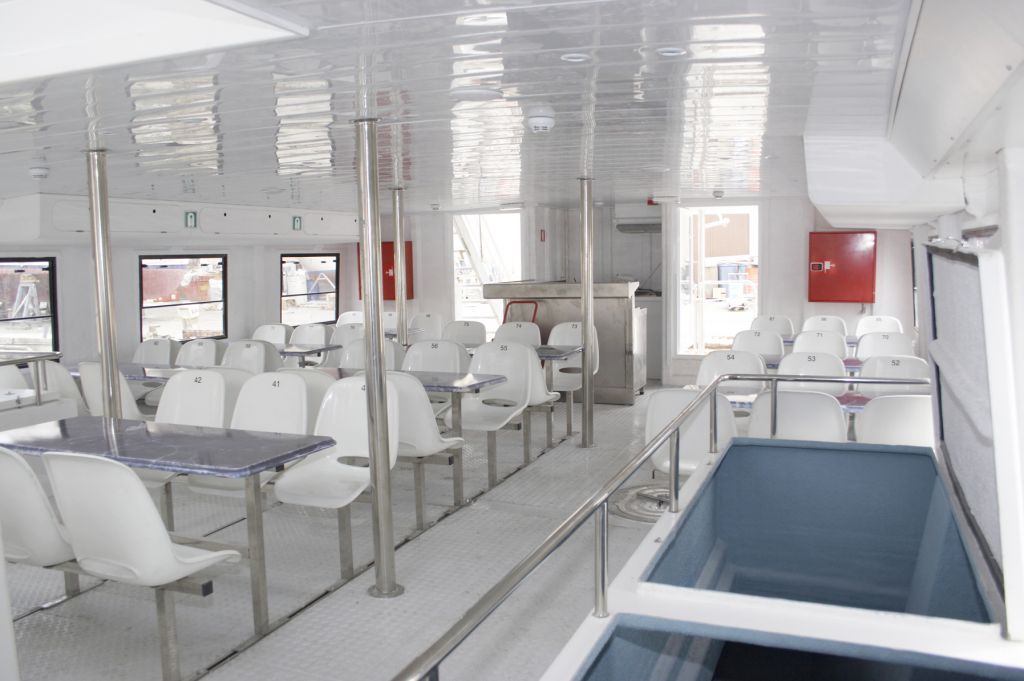

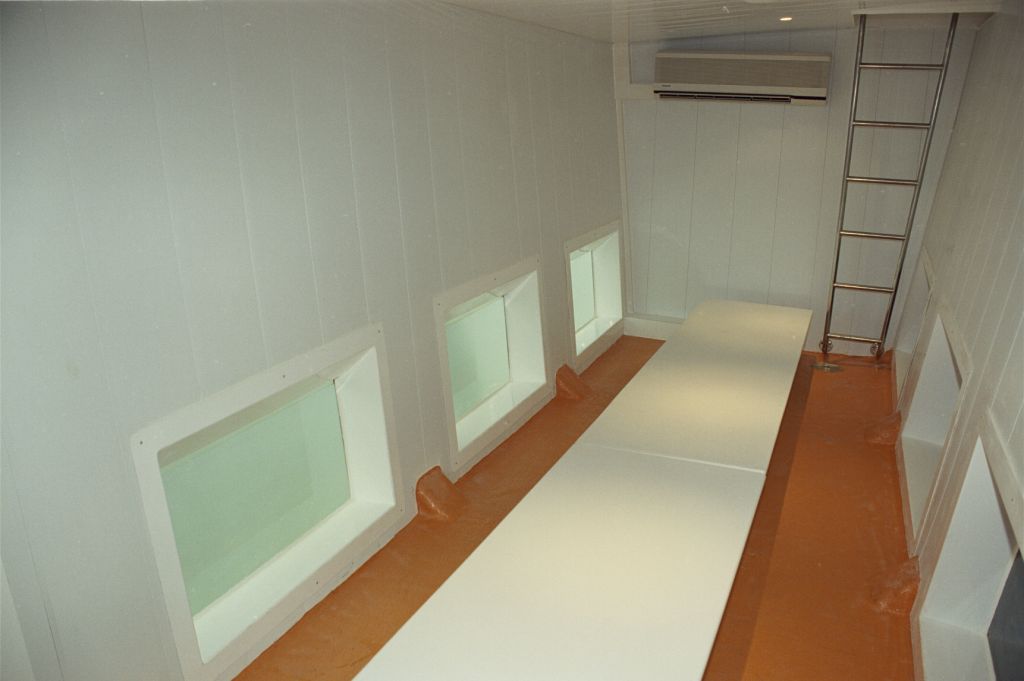

Glass Bottom Vision
Luggage compartment

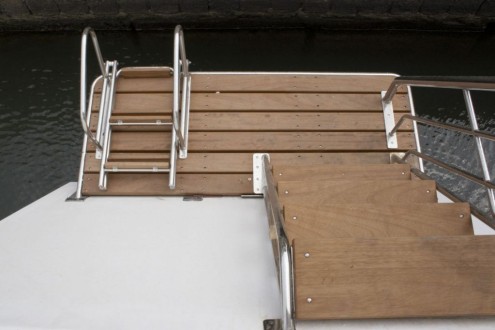

Bathing platform.

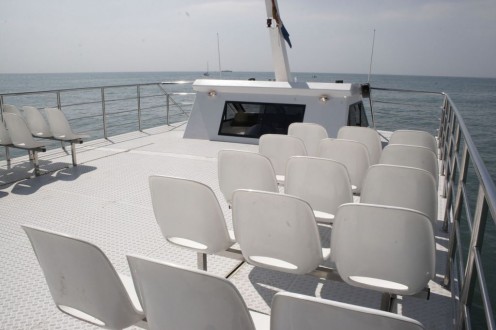

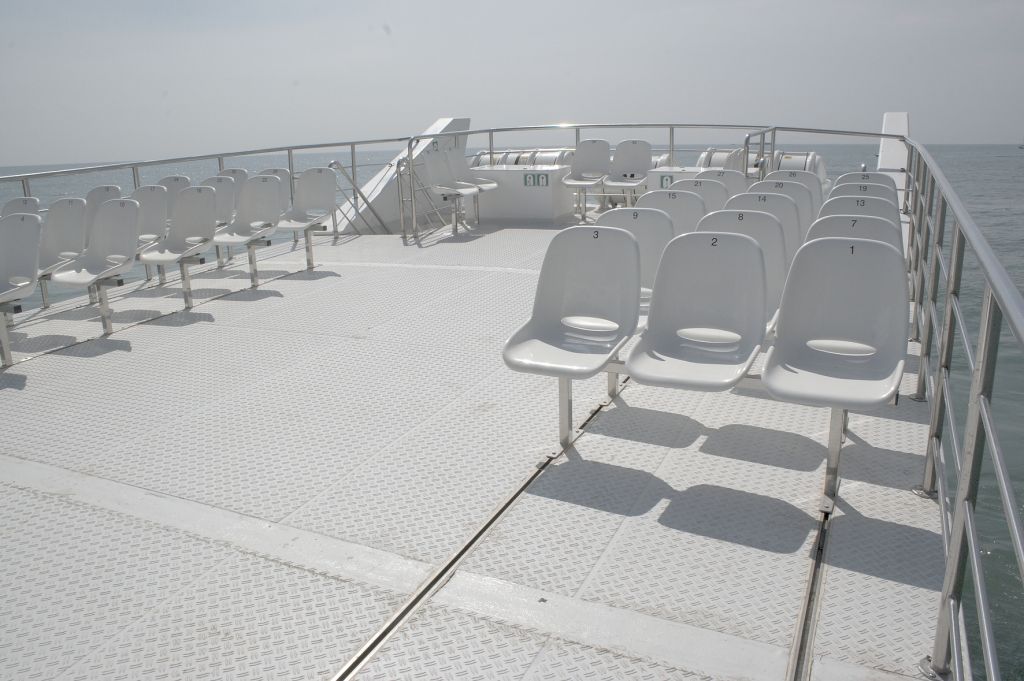

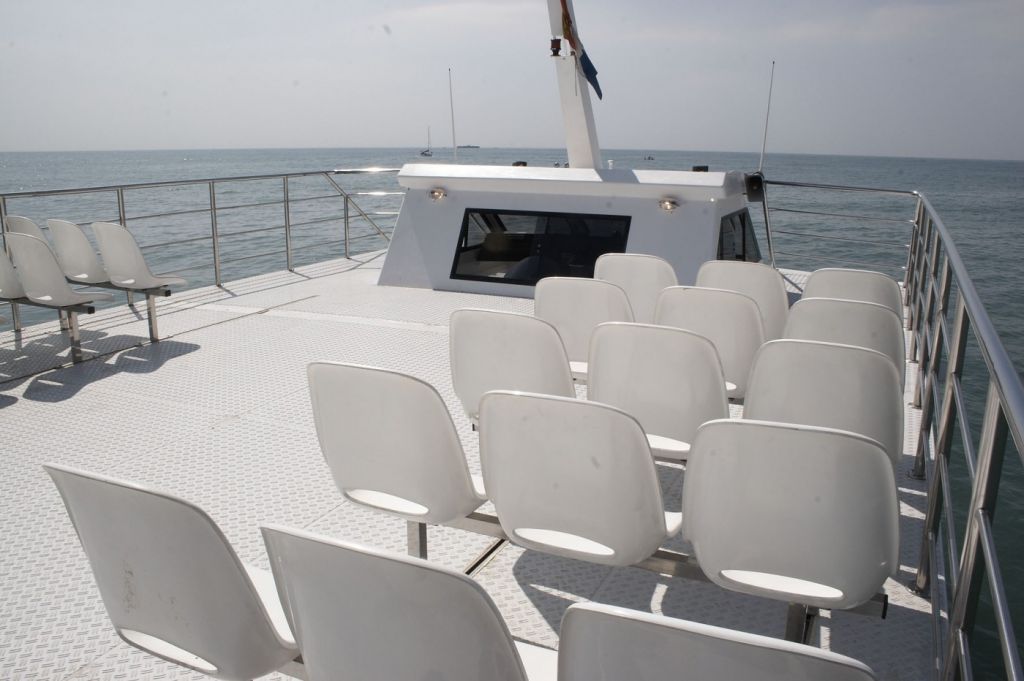

Open Upper Deck
CO2 Installation
Rescue Boat
Passenger Catamaran   video
